Cambium Switch 24 port POE

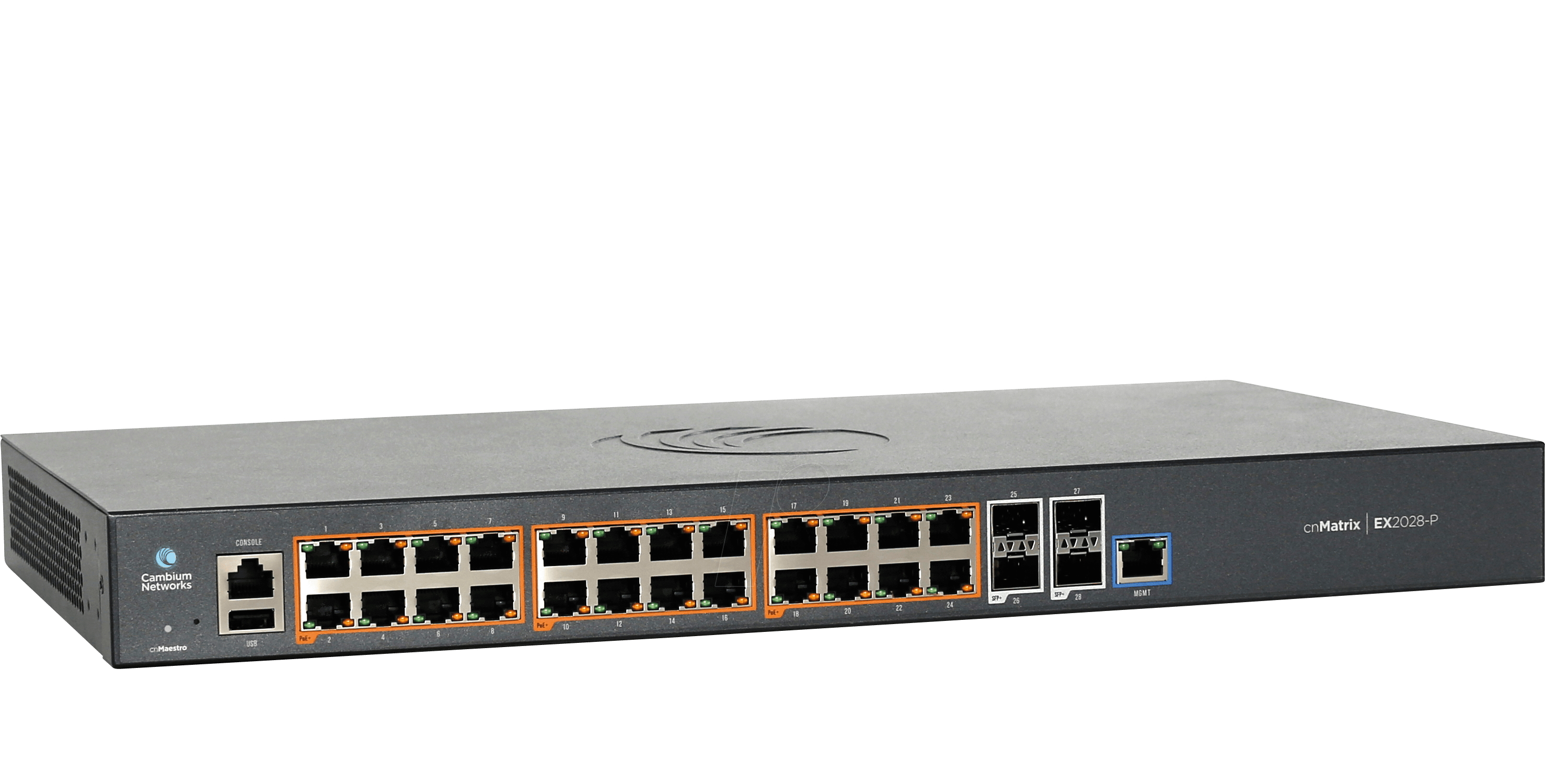

cnMatrix EX2028-P

Improve network performance while reducing the time and cost of provisioning and management:
CnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.


Throughput: 128 Gbps
PoE enabled ports: 24
PoE power budget units (watts): 400
10/100/1000 ports: 24
Uplink ports: 4 SFP+
Internal fans: 2

Quality of Service

ACL mapping and marking of ToS/DSCP (COS)
ACL mapping to priority queue
Honoring DSCP and 802.1p(CoS)
Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP

Traffic Management

ACL-based inbound rate limiting policies
Inbound rate limiting per port
Broadcast, multicast and unknown unicast rate limiting
Outbound rate limiting per port/queue
